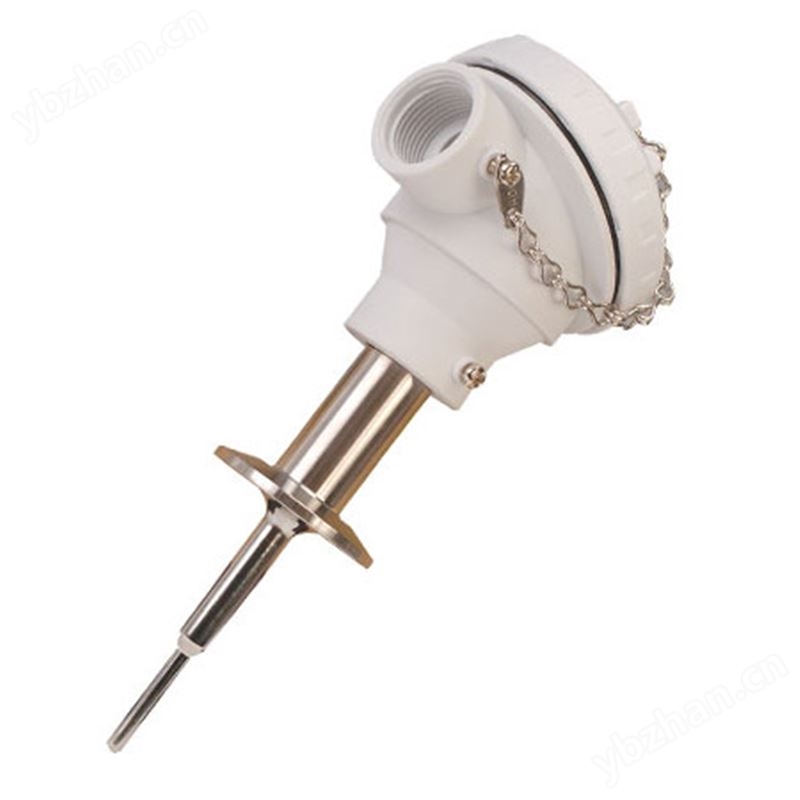

omega3-A经过批准的卫生热电偶传感器，带聚丙烯连接头
TCS-H-NB9W Series
- 3-A Approved Design, Combined with a Mounting Flange Meeting the Requiremnets of ASME-BPE-2007, Assures Trouble-Free Cleanability and Interchangeability
- Sensor Can Be Used in Sanitary, Hygienic and Clean-In-Place Food, Dairy, Beverage and BioPharmaceutical Processes
- Process Connection is a 1½" 16AMP Tri-Grip™ (Tri-Clamp® Compatible) Conforming to ASME BPE-2007, Other Cap Sizes and Styles are Available
- Wetted Surfaces are 316L Stainless Steel, Surface Finish = 32 Microinch or Better
- Standard Lengths Include 3, 4, 5 and 6" Probe Lengths, Other Lengths Available
- Connection Head is White Screw Cap Style Polypropylene Standard, Stainless Steel Head Also Available
- Ungrounded J, K, T or E Thermocouple, Special Limits of Error
- -50 to 200°C (-58 to 392°F) Temperature Range
标准探头设计：
Standard Duty ¼" Probe Design
TCS-TU-S-0300-D1-NB9W 3" Probe, Type "T" Thermocouple
TCS-TU-S-0400-D1-NB9W 4" Probe, Type 'T" Thermocouple
TCS-TU-S-0500-D1-NB9W 5" Probe, Type "T" Thermocouple
TCS-TU-S-0600-D1-NB9W 6" Probe, Type "T" Thermocouple
TCS-JU-S-0300-D1-NB9W 3" Probe, Type "J" Thermocouple
TCS-JU-S-0400-D1-NB9W 4" Probe, Type "J" Thermocouple
TCS-JU-S-0500-D1-NB9W 5" Probe, Type "J" Thermocouple
TCS-JU-S-0600-D1-NB9W 6" Probe, Type "J" Thermocouple
Heavy Duty 3/8" to 3/16" Probe Design
TCS-TU-H-0300-D1-NB9W 3" Probe, Type "T" Thermocouple
TCS-TU-H-0400-D1-NB9W 4" Probe, Type "T" Thermocouple
TCS-TU-H-0500-D1-NB9W 5" Probe, Type "T" Thermocouple
TCS-TU-H-0600-D1-NB9W 6" Probe, Type "T" Thermocouple
TCS-JU-H-0300-D1-NB9W 3" Probe, Type "J" Thermocouple
TCS-JU-H-0400-D1-NB9W 4" Probe, Type "J" Thermocouple
TCS-JU-H-0500-D1-NB9W 5" Probe, Type "J" Thermocouple
TCS-JU-H-0600-D1-NB9W 6" Probe, Type "J" Thermocouple
产品描述
The3-A ApprovedOMEGA™ TCS-S-NB9W and TCS-H-NB9W Series Thermocouple Sensors are designed for use inSanitary or Hygienic Clean-in-Place applications in theFood, Dairy, Beverage and BioPharmaceutical industries. These sensors are manufactured with 316L stainless steel housings that meet the requirements ofASME BPE-2007 and 3-A Standard 74-05, and are welded and processed to provide a clean, smooth, 32µinch or better surface finish in the wetted areas for easy cleaning.In addition to thestandard 1½-16AMP process connection, these can be provided in the following sizes and styles:
If you need a process connection that is not listed above, please contact our sales department for availability.
The probe stems are manufactured in two configurations; standard¼" diameter probe for standard duty service, and a stepped3/8" to 3/16" diameter probe design for good response times inheavy duty applications.
This sensor is available with either awhite polypropylene screw-top connection head (NB9W) or astainless steel screw top connectoion head (NB15) for connection to your process instrumentation. These sensors arealso available in RTD and Thermistor styles to accommodate any process input requirement. In addition to the standard 1½-16AMP flange design, this sensor can be provided in a wide variety of flange sizes and styles. If you need something a little (or a lot) different, we can accommodate your needs.
Food process hygienic temperature sensors can be used to aid food safety inspection compliance and verification of time temperature control. Combined with a chart recorder model CTXL you can temperature monitor a CCP ( Critical Control Point) or sanitation time and move toward a HACCP (Hazard Analysis Critical Control Point) compliance plan.
This sensor is stocked with Type "T" or Type "J" Thermocouples standard, but are available in any thermocouple type:
