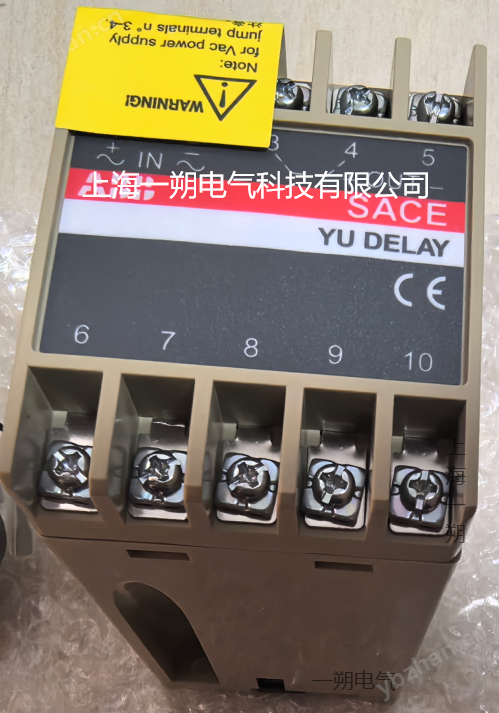

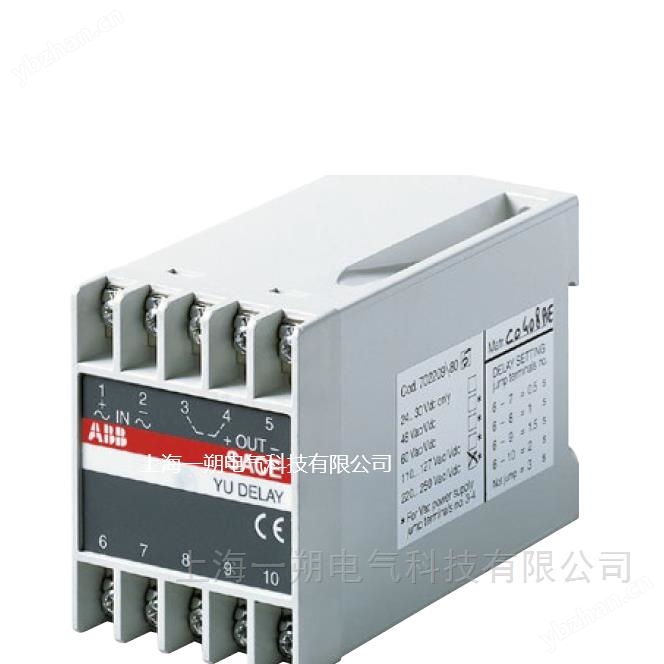

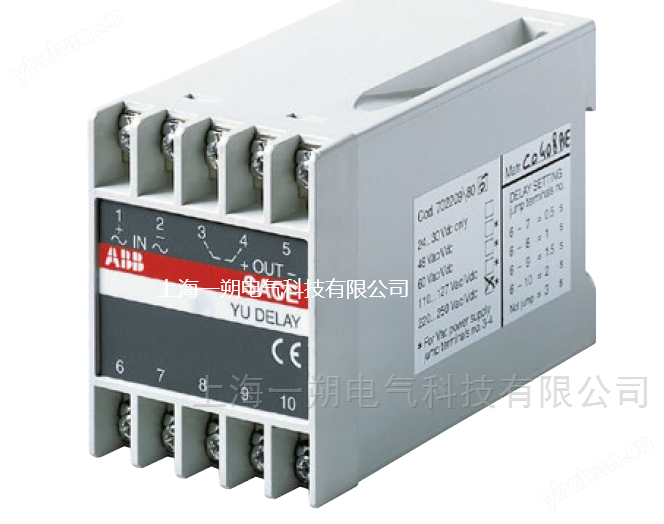

真空断路器电气延时继电器1VCF339750S7909 ，
Auxiliary relay D-KT-KFT for time delay 0,5-3s of undervoltage release YU-MU-MBU aux. voltage 110-132Vdc/ac for HD4, VD4, eVD4, Vmax。出口版，IEC。
电气延时继电器 1VCF339750S7909， Auxiliary relay D-KT-KFT for time delay 0,5-3s of undervoltage release YU-MU-MBU aux. voltage 110-132Vdc/ac for HD4, VD4, eVD4, Vmax， 出口版，IEC。电气延时装置必须安装在断路器的外部。它使得断路器可在可调的、预先设定好的时间后分闸。如果此装置未加电，则断路器无法合闸。电气延时装置必须与相同工作电压的欠压脱扣器配合使用。 欠压脱扣器可与电气延时装置（-KT）配合使用，可防止在二次电源很短时间的暂时性下降或失电的情况下断路器误分闸。可调的延时时间 2）：0.5-1-1.5-2-3 s 。
1VCF339750S7902 Auxiliary relay D-KT-KFT of undervoltage release YU-MU-MBU aux. voltage 24-30Vdcfor time delay 0,5-3s for HD4-VD4-Vmax
1VCF339750S7904 Auxiliary relay D-KT-KFT of undervoltage release YU-MU-MBU aux. voltage 48Vdc/acfor time delay 0,5-3s for HD4-VD4-Vmax
1VCF339750S7905 Auxiliary relay D-KT-KFT of undervoltage release YU-MU-MBU aux. voltage 60Vdc/acfor time delay 0,5-3s for HD4-VD4-Vmax
1VCF339750S7909 Auxiliary relay D-KT-KFT of undervoltage release YU-MU-MBU aux. voltage 110-132Vdc/ac for time delay 0,5-3s for HD4-VD4-Vmax
1VCF339750S7918 Auxiliary relay D-KT-KFT of undervoltage release YU-MU-MBU aux. voltage 220-240Vdc/ac for time delay 0,5-3s for HD4-VD4-Vmax
1VCF349750S0334 Position switches of circuit-breaker operating mechanism (set of 10)
1VCF349750S0335 Position switches of circuit-breaker operating mechanism (set of 15)
1VCF349850S0159 Position switches of circuit-breaker operating mechanism (set of 15)
1VCF349850S0161 Position switches of circuit-breaker operating mechanism (set of 5)
1VCF349850S0162 Position switches of circuit-breaker operating mechanism (set of 10)
1VCF309750S0201 Position switches BGB1-BGB2 of circuit-breaker operating mechanism (set of 14)
1VCF309750S0221 Position switches BGB1-BGB2 of circuit-breaker operating mechanism (set of 20)
1VCF349799S0631 SF6 integrated circuit control with 3 leds aux. voltage 24-30Vdc
1VCF349799S0632 SF6 integrated circuit control with 3 leds aux. voltage 48-60Vdc
1VCF349799S0633 SF6 integrated circuit control with 3 leds aux. voltage 110-125Vdc/110-127Vac
1VCF349799S0634 SF6 integrated circuit control with 3 leds aux. voltage 220Vdc
1VCF349799S0635 SF6 integrated circuit control with 3 leds aux. voltage 220-240Vac
1VCF339751R4909
1VCF339752R4909,
1VCF339752S4909,
1VCF339750R7909
1VCF369828R0909
1VCF339750R7918
1VCF369828R0918
1VCF339750R7904
1VCF369828R0904
1VCF339752R4912;
1VCF339752R4914;
1VCF339752R4939;
1VCF339752R4941;
1VCF339752R4943;
1VCF339752R4969;
1VCF339752R4971;
1VCF339752R4973,
1VCF349750R0213
1VCF349850R0331
1VCF349850S0902
1VCF349850S0903
1VCF349850S0904
1VCF349850S0905
1VCF339751R8909,
1VCF339751R8909;
1VCF339751R8912;
1VCF339751R8939;
1VCF339751R8941;
1VCF339751R8943;
1VCF339701R8969;
1VCF339751R8969;
1VCF339751R8971;
1VCF339751R8973;
1VCF329750S0913
1VCF349850S0913
1VCF339751S4909
1VCF339752S6909;
1VCF339752R6909
1VCF339752R6912;
1VCF339752R6914;
1VCF339752R6939;
1VCF339752R6941;
1VCF339752R6943;
1VCF339752R6969;
1VCF339752R6971;
1VCF339750R6973;
1VCF339752R6973
1VCF349850S0922
1VCF859800S0009
1VCF859800S0132
1VCF859800S0131
1VCF859800S0130
1VCF859800S0128
电气延时继电器 1VCF339750S7909， Auxiliary relay D-KT-KFT for time delay 0,5-3s of undervoltage release YU-MU-MBU aux. voltage 220-240Vdc/ac for HD4, VD4, eVD4, Vmax 。 出口版，IEC。
1VCF349757S0902 Electromechanical lock for operating mechanism YL1-RL1-RLE1 aux. voltage 24Vdc
1VCF349757S0903 Electromechanical lock for operating mechanism YL1-RL1-RLE1 aux. voltage 30Vdc
1VCF349757S0904 Electromechanical lock for operating mechanism YL1-RL1-RLE1 aux. voltage48Vdc/ac
1VCF349757S0905 Electromechanical lock for operating mechanism YL1-RL1-RLE1 aux. voltage60Vdc/ac
1VCF349757S0909 Electromechanical lock for operating mechanism YL1-RL1-RLE1 aux. voltage110-132Vdc, 110-127Vac
1VCF349757S0918 Electromechanical lock for operating mechanism YL1-RL1-RLE1 aux. voltage220-250Vdc/ac
1VCF349750S0902 Motor for circuit-breaker springs charging M-MS-MAS aux. voltage 24-30Vdc,24V50Hz
1VCF349750S0904 Motor for circuit-breaker springs charging M-MS-MAS aux. voltage 48-60Vdc/ac50Hz
1VCF349750S0909 Motor for circuit-breaker springs charging M-MS-MAS aux. voltage 110-132Vdc,110-127Vac
1VCF349750S0918 Motor for circuit-breaker springs charging M-MS-MAS aux. voltage 220Vdc
1VCF349750S0948 Motor for circuit-breaker springs charging M-MS-MAS aux. voltage 220-250Vac
1VCF349750S0121 Manual device for closing spring charging
1VCF349750S0395 Position switch S75C-BT3-BGT3 for HD4/W/P/SEC/GT_P/US, HM1/UT_W/UT_P
1VCF349799S0171 Motor limit switch S33M/1-BS1-BGS1
1VCF349799S0501 Mechanical operation counter
