间歇开关通断循环定时器一拖二变频PWM双输出通断互锁可调控制器
电机 马达 风机 风扇 改遥控 改变频 改PWM 调速 节能 双输出 互锁 间歇开关 通断循环定时器 一开另一关
应用场景 风机 通风，新风系统 ，生产线 冷却线 加热线 ，喷涂，喷淋，LED 灯光控制 闪灯控制 小风扇调速
同步电机调速 等等

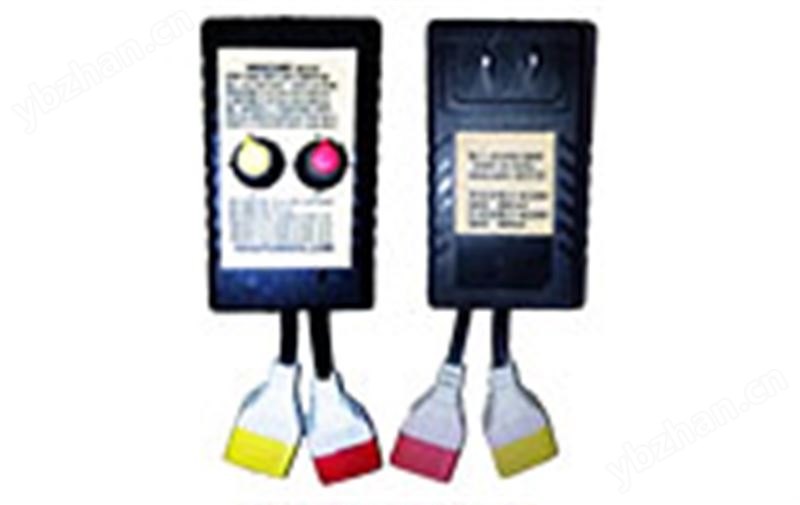

NKAC150Y(遥控型)一拖二变频PWM双输出通断互锁可调控制器
1 原理 控制输出端的通断时间间隔以达到调控输出功率的目的，所以输出端电压与频率与输入端相同
PWM=Pulse Width Modulation=调制脉冲宽度调节输出功率
2 工作过程 两插脚输入AC220V 50HZ(内置250V 2A保险)，输入端与黄色插座输出相同（无PWM无互锁）
按遥控器黄标签风速键,黄插座按黄旋钮PWM输出，按遥控器红标签摇头键,红插座按红旋钮PWM输出

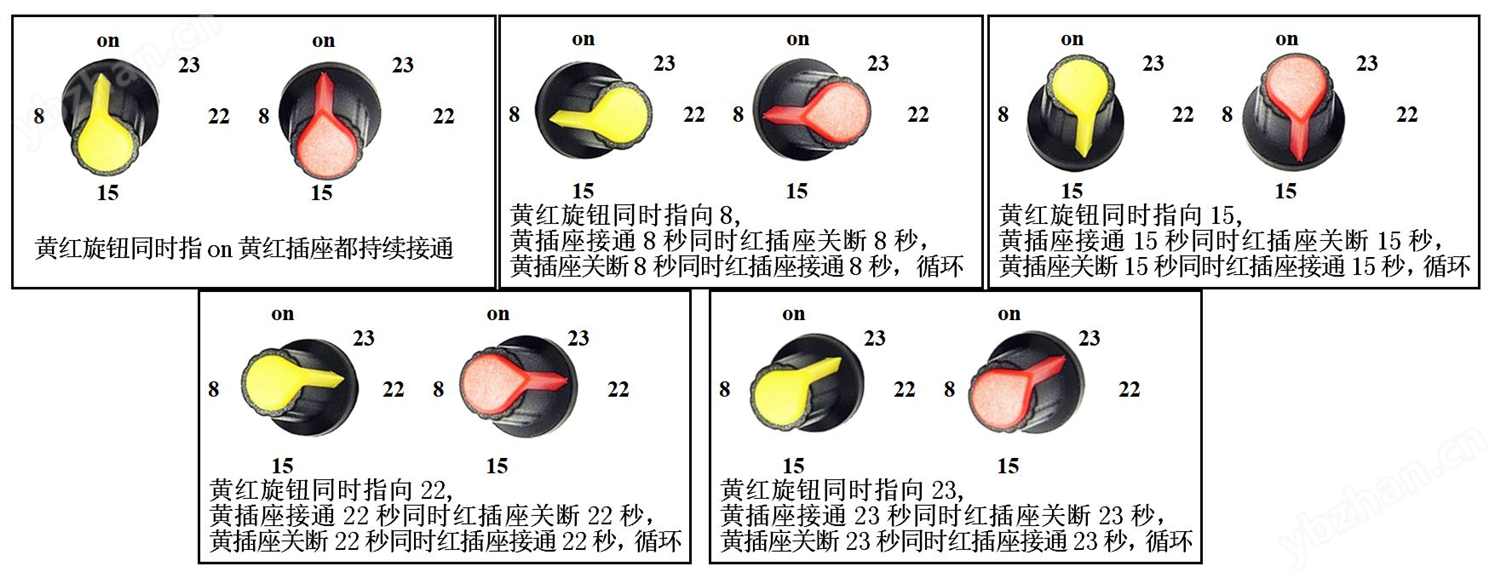

控制器内部默认： 黄 红 LED亮灭互锁 黄 红 插座通断互锁(按遥控器黄红标签按键有PWM输出时）
黄LED亮=黄插座通同时红LED灭=红插座关断，黄LED灭=黄插座关断同时红LED亮=红插座通
3 输入电源AC220V,分别按遥控器黄红标签按键，黄红旋钮PWM设置才有效，黄红插座才有PWM输出
额定输入AC220V (内置250V2A保险)黄插座输出AC220V 800mA 红插座输出AC220V 800mA
在输入电源AC220V后，黄红输出插座在关断状态下，单极持续接通，另一极通过电子管高阻关断
在输入电源AC220V后，黄红输出插座在关断状态下，仍然带电，请忽触摸插头插座金属部分
遥控器要对准遥控接收头才能有效，遥控有效距离5米 ，
要按遥控器黄标签按键黄插座才有PWM输出，要按遥控器红标签按键红插座才有PWM输出
自主研发，可定制直流输入输出PWM，或大功率PWM，出线长度，国际插脚或插座

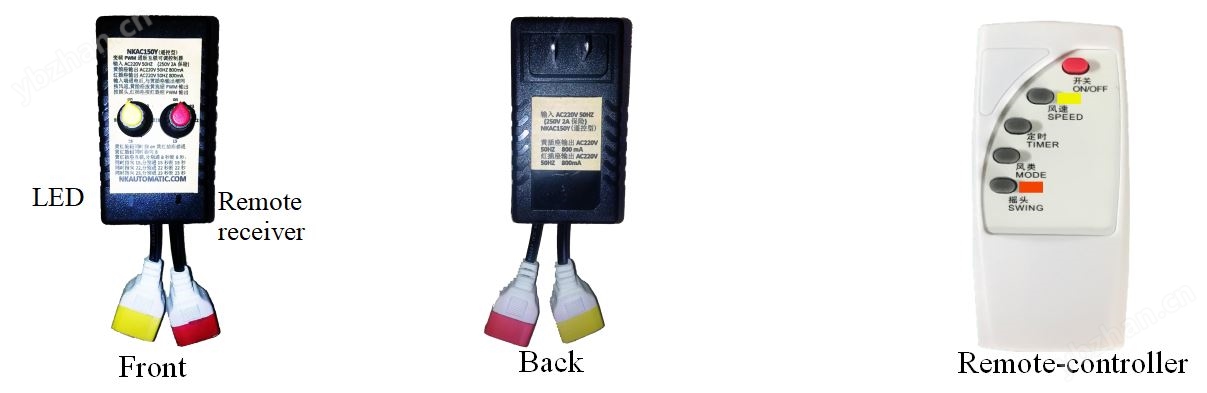

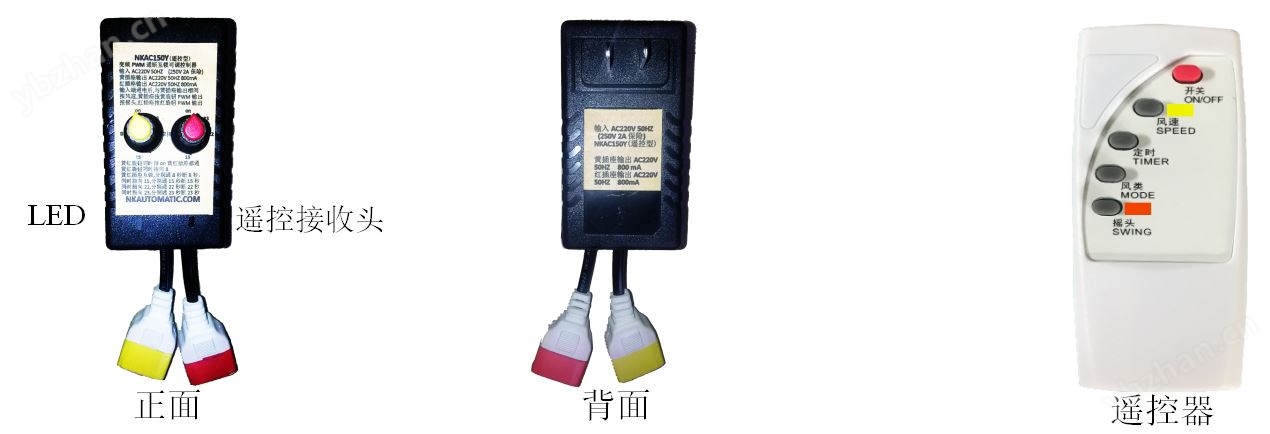

NKAC150Y(遥控型) 标准配置
两扁插脚 输入AC220V 50HZ (250V 2A保险)
两扁插座 黄插座输出AC220V 50HZ 800 mA 红插座输出AC220V 50HZ 800mA (包括插座输出线长度75mm)
控制器不包括插脚插座 尺寸 长98x宽54x高35mm,插脚长35x宽20x高25mm 控制器包括插脚插座重量300g
手持式遥控器 输入直流DC3V =AAA-1.5V 7号电池 2只
手持式遥控器 包括电池200g 长105x宽40x高15mm
Intermittent switch, on /off cycle loop timer
Application scenario fan ventilation, fresh air system, production line cooling line heating line, spraying, spraying, LED lighting control flashlight control etc
NKAC150Y(remote control)1 input 2 output PWM on/off interlocking controller
1 operational principle The on/off time of the output is controlled by the controller, so the output voltage and frequency are the same as the input terminal. PWM=Pulse Width Modulation Power
2 operational process Input AC230V 50/60HZ(built-in 250V 2A Fuse)，input=Yellow output（no PWM no interlocking）
Press yellow label speed key of the of the remote-controller, the Yellow socket = Yellow knob PWM output, Press red label swing key of the remote controller, the red socket =red knob PWM output.
press remote-controller yellow/red label button when PWM output, Controller interlock default：
Yellow LED brightness = yellow socket on and at the same time red LED extinguishing = red socket off,
yellow LED extinguishing = yellow socket off and at the same time red LED brightness = red socket on
3 Input AC220V,press the yellow/red label button of the remote-controller ，the yellow/red knob PWM settings will be effective, and the yellow/red socket will have the PWM output.
Rated input AC230V (built in 250V2A Fuse)
Yellow socket output AC230V 600mA ,Red socket output AC230V 600mA.
After input AC230V, the yellow-red socket is still Electrification when they are off,
at this time one pole is continuously on, and the other is off by the high resistance .
Don't touch the metal part of the input & output socket.
The remote-controller must aim at the remote- receiver , and the remote-controller distance is 5 meters.
Yellow output of PWM can only be obtained until by pressing the yellow label button of the remote-controller, and Red output of PWM can only be obtained until by pressing the red label button of the remote-controller.
We can customize DC input & output DC PWM, or max-power PWM, outlet length, international voltage pin or socket
NKAC150Y (remote control) standard configuration 2 flat pin input AC230V 50/60HZ (250V 2A Fuse)
Output 2 flat sockets ,yellow socket output AC230V 50/60HZ 800 mA ,
red socket output AC230V 50/60HZ 800 mA (including output socket line length 75 mm)
Controller size (not include input pin)length 98x wide 54x high 35mm,
pin length 35x wide 20x high 25mm controller weight (includes pin socket)300g
Hａnd held remote-controller input DC DC3V =AAA-1.5V battery X 2.
Handheld remote controller weight (includes battery) 200g
size length 105x width 40x high 15mm
